Large electric height adjustable collaborative table with easy access from all sides.

Ideal for Conference Rooms, Hospitality Suites, Training Areas and Trade Shows.

Call us today on:

02392 512 794

Int. +44 (0) 2392 512 794

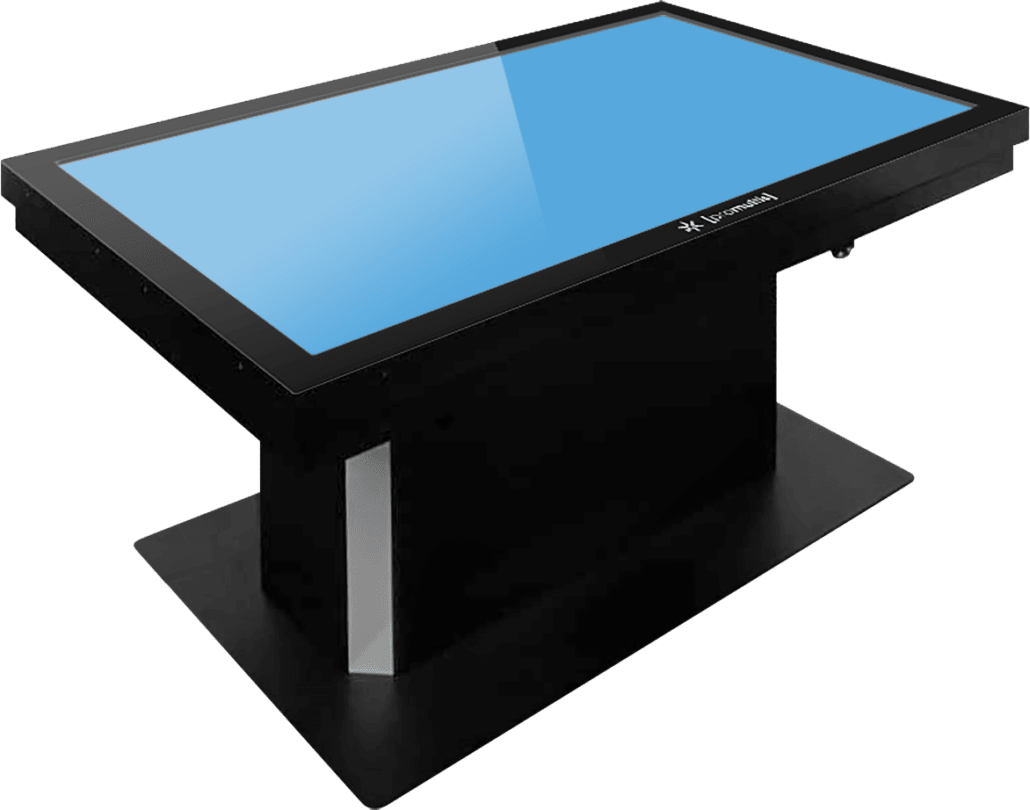

Promultis Uno Elite Multitouch Interactive Table

The Promultis Uno Elite is an electric height adjustable, collaborative, interactive table ideal for:
  • Conference Rooms
  • Hospitality Suites
  • Training Areas
  • Trade Shows
  • Museum & Galleries

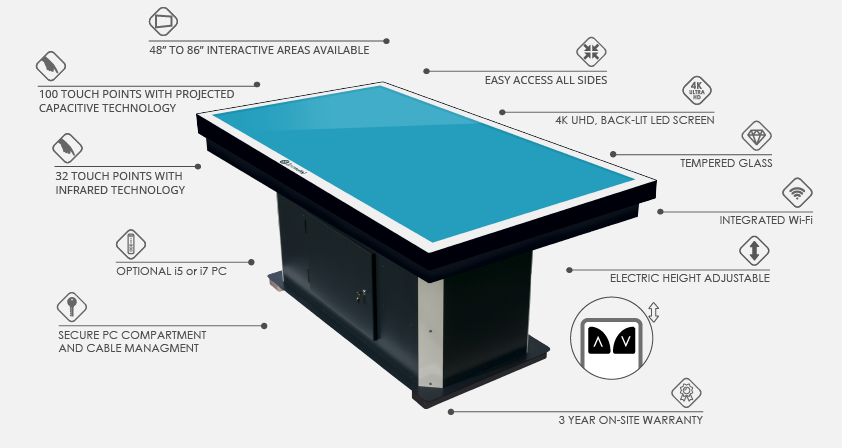

Multi User, collaborative table with easy access from all sides
  • 100 Touch Points with Projected Capacitive Technology
  • Lockable PC cage in a single central column
  • Integrated usb connections
  • 48" to 84" screens available
  • i5 or i7 PC options
  • Large surface area for multi-users
  • 3 year repair or replace warranty
  • Interactive software options available
SPECIFICATION

CHASSIS FEATURES

PROJECTED CAPACITIVE TECHNOLOGY

Material Metal & Aluminium Detection method Projected Capacitive
Glass Tempered Glass Input method Finger and gloved finger
Lockable Cabinet Cable Mangement and PC shelf Number of simultaneous touches 100
Base Heavy Duty Feet Noise Shielding DISPLAX XTR-ShieldTM Plus, a proprietary noise filtering technology

PANEL

Aspect ratio 16:9
Screen Options 48” | 55” | 65” | 75” | 84” Controller Printed circuit board with mini USB connector
Panel resolution 4K UHD 3840 x 2160 Adhesive Permanent
Native resolution 3840 x 2160 60Hz Substrate Float Glass, Gorilla Glass
Brightness (nits) 650 Interface HID
Contrast ratio 1500 to 1 OS with multitouch Windows 8.1, 8, 7*: Ubuntu 12.04**; Android**; Chrome OS***
Response time 6ms OS with single touch Mac OS X Yosemite
Aspect ratio 16:9 OS with mouse emulation Spinetix Media Player HMP 200
Viewing angle horizontal / vertical 178° / 178° Data connectivity USB 2.0
Pixel pitch 0.744 (mm) Touch accuracy 1mm absolute
LCD Illumination Backlit LED Sensor weight 260 g
Speakers 10W x2 Controller weight 60 g

ENVIRONMENT

PERFORMANCE

Operating temperature 50°F to 104°F (10°C to 40°C) Substrate thickness Up to 6mm
Operating Humidity 10% to 80%, non-condensing Touch response 5 milliseconds
Storage Temperature -4°F to 113°F (-20°C to 45°C) Calibration Available using control panel: no drift
Storage Humidity 5% to 95%, non-condensing

POWER CONSUMPTION

SHIPPED WITH

Average power consumption (P) USB powered @ 5V
Cables Power | USB | HDMI Peak consumption: 410 mA
Remote control Included Operation consumption: 370mA
Screen freeze function On remote control

RELIABILITY

User manual Included Operating temperature range -20°C to 70°C

WARRANTY

Operating humidity range 0% to 96%
3 year repair or replace warranty as standard Life time expectancy Unlimited
Extended warranties and SLA’s available at an additional cost Controller life time expectancy 1 million hours
* Home Premium SP1; Professional SP1 Ultimate x64 SP1 ** Depending on kernel and multitouch support. *** 39.0.2171.85(64 bit)
DIMENSIONS
